Pre-Paint/Conversion Coatings

Rust is the Problem.

Blasting creates profile.
It doesn’t stop flash rust.

If parts sit unprotected between blast and coat, oxidation begins immediately — compromising adhesion before powder ever hits the surface.

See how improved post-blast pretreatment stabilized the surface and improved coating performance. Read the case study.


Speak to an expert

Which Conversion Coating is Right for Your Process?

Hubbard-Hall offers innovative technologies for iron phosphates and zirconium conversion coating processes. Our experts use these technologies to enhance adhesion, provide superior surface cleanliness and ensure environmental compliance – key factors in achieving both efficiency and quality in your pre-treatment process. Whether you need a corrosion-resistant base coat or improved paint adhesion, we can help.

Iron Phosphates

An extensive line of iron phosphate products for pre-paint treatments, applied by spray or soak, single stage up to 7-stage for both ferrous and nonferrous substrates. Providing excellent paint adhesion and superior bonding & salt spray results. We can tailor a product to match your individual process and achieve your performance and quality goals.

Bond Guard ZRC

Bond Guard ZRC is a family of zirconium conversion coating processes to provide advanced bonding and anti-corrosion treatment for all metals. Formulated to replace conventional Iron or Zinc phosphate products in pretreatment applications with outstanding performance

  • Environmental Advantages, Phosphate Free
  • Improved Salt Spray Performance (> 1000 hours)
  • Reduced Total Processing Cost (Up to 50% v. Iron Phosphate)
  • Ambient Temperature Operation Capabilities.
  • Reduced Energy Expense Significantly Reduced Scaling and Sludging
  • Reduced Waste (Never Dump, No chemical by product sludge)
  • Multi Metal Use (Steel, Aluminum, Zinc Galvanize)

Eco-Quest Phosphate Free

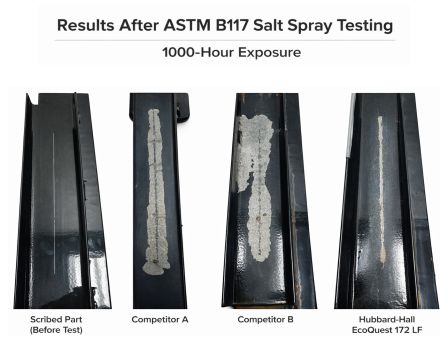

Eco-Quest is a revolutionary advanced bonding and anti-corrosion treatment for all metals. Formulated to replace conventional Iron or Zinc phosphate products in pretreatment applications.  This unique process provides a dry in place polymeric coating that crosslinks with subsequent topcoats to provide improved adhesion and corrosion protection.

  • Non-hazardous, metal free, moderate pH
  • Multi metal capabilities (Steel, Aluminum, Zinc Galvanize)
  • Non Sludging, reduced waste & maintenance
  • Ambient temperature
  • 1-Step clean & coat available

What are the most important pretreatment parameters to monitor?


This checklist helps you verify cleaner performance, rinse quality, conversion coating conditions, and process consistency before variability leads to adhesion failures, corrosion issues, or rework.

Download the Pretreatment Checklist

Bond Guard ZRC

Multistage Zirconium Processes for all Types of Metals

  • Internally Accelerated
  • Multi Metal Capabilities: Aluminum, Zinc, Galvanize & Ferrous Metals
  • Low Temperature Options Available
  • Proven to provide over 1000 hours salt spray resistance

Phos & Clean

Iron Phosphate Cleaning & Pretreatment Chemistry

  • High performance detergent package for optimum cleaning
  • Excellent adhesion and corrosion control
  • Steam wand & immersion processes
  • Multi metal capabilities: Aluminum, Zinc, Galvanize & Ferrous Metals

NCS

Final seal rinses for any type of pretreatment process

  • Highest level of adhesion & extended salt spray performance
  • Non chrome
  • Dry in place, passivating & zirconium options

Hero Products

Eco Quest NCS 172-LF

Eco Quest NCS 172-LF is a nano-zirconium surface preparation process that provides advanced bonding and corrosion protection for multiple metal substrates in a single, non-acidic step.

Learn more

Hubfos 150

Hubfos 150 provides superior corrosion resistance when compared to traditional iron phosphates and many newer phosphate-free technologies.

Learn more

Clean & Bond 2086

Clean & Bond 2086 is a one-step, phosphate-free pretreatment that delivers cleaning and enhanced coating adhesion while improving corrosion resistance on a wide range of metals.

Learn more

Iron Phosphate

  Cleaner Coater Wand Immersion 3 Stage 5 Stage Sealer Steel Aluminum Zinc Phos Free Dry in Place Salt Spray
Phos & Clean HS-222 X X       X O O     250+
Phos & Clean HS-333 X X       O X X     1000+
Phos & Clean LF-22 X X X     X O O     250+
Bond Guard 1347-S       X   X X X     250+
Hubfos 150       X   X

Zirconium

  Cleaner Coater Wand Immersion 3 Stage 5 Stage Sealer Steel Aluminum Zinc Phos Free Dry in Place Salt Spray
Bond Guard ZRC-111       X   X X X X X 500+
Bond Guard ZRC-222 X X       X X X X X 500+
Bond Guard ZRC-333     X     X X X X X 500+

EcoQuest

  Cleaner Coater Wand Immersion 3 Stage 5 Stage Sealer Steel Aluminum Zinc Phos Free Dry in Place Salt Spray
EcoQuest NCS-170     X X X X X X X X 250+
EcoQuest NCS-171 X   X X X X X X X X 250+
EcoQuest NCS-172-LF X   X X X X X X X X 250+

Seal Rinses

  Cleaner Coater Wand Immersion 3 Stage 5 Stage Sealer Steel Aluminum Zinc Phos Free Dry in Place Salt Spray
Seal Rinse AM-25         X X O O X X 250+
NCS Z-1         X X X X X X 500+
NCS Z-3         X X X X X X 500+
Emerald Seal 308         X X X X X X 500+

Looking for More Pre-Treatment Alternatives?

Designed for lasting performance, our zinc and manganese phosphates help improve your product’s longevity.

Explore functional coating options

Our Metal Finishing Experts at your Fingertips — or Tank-Side

Take the first step toward a better pre-treatment process. Schedule your consultation today.
